X-Fly Twin-Otter 1800MM PNP

Rp9.300.000 Original price was: Rp9.300.000.Rp8.450.000Current price is: Rp8.450.000.

In stock

📦 Est. volumetrik kurir: 35.48 kg
Tersedia juga di:
TokopediaShopeeToco
SKU: XF116P Categories: Float Planes, RC Models, Scale planes, STOL/Bush Plane Brand: Xfly
  • Description
  • Foto & Video
  • Specs
  • Additional information
  • Reviews (0)

Description

XFly Twin Otter 1.8m PNP

Modeled after DeHavilland DHC-6 Twin Otter, XFly Model Twin Otter 1800mm was developed by their team with the intention to make it true-to-scale, from design features such as cockpit with clear windows, control surfaces, fixed tricycle landing gears, twin power system setup, to STOL (Short Takeoff and Landing) capabilities.

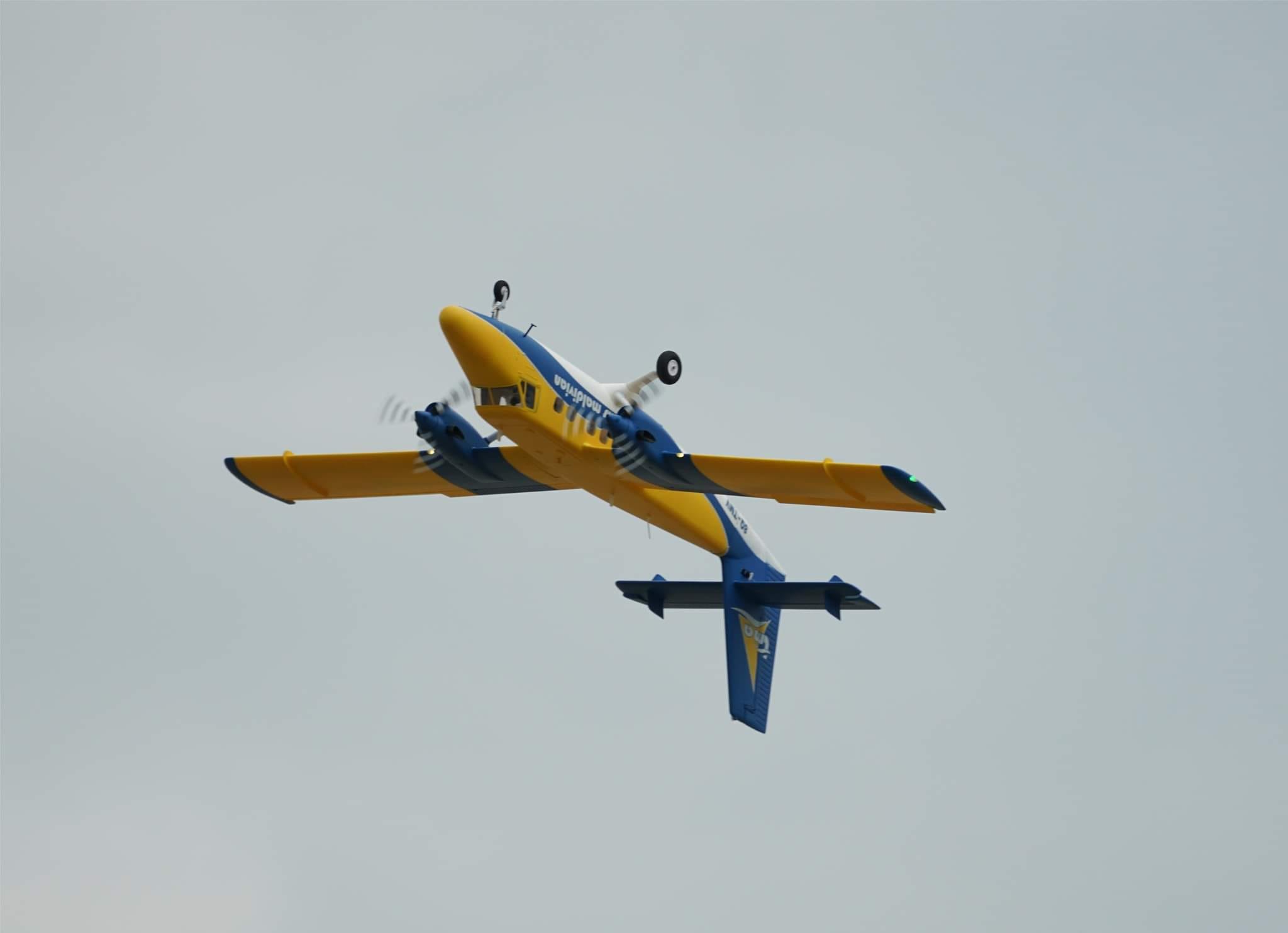

Powered by a single 6S 5000-6000mAh LiPo battery, the combination of twin 3541-KV550 motors, twin 40A ESCs and 3-blade propellers brings RC pilots the optimum setup for power and duration. XFly Twin Otter is capable of aerobatic maneuvers including loops, 4-point rolls and inverted flight, despite of flying with landing gears or floats.

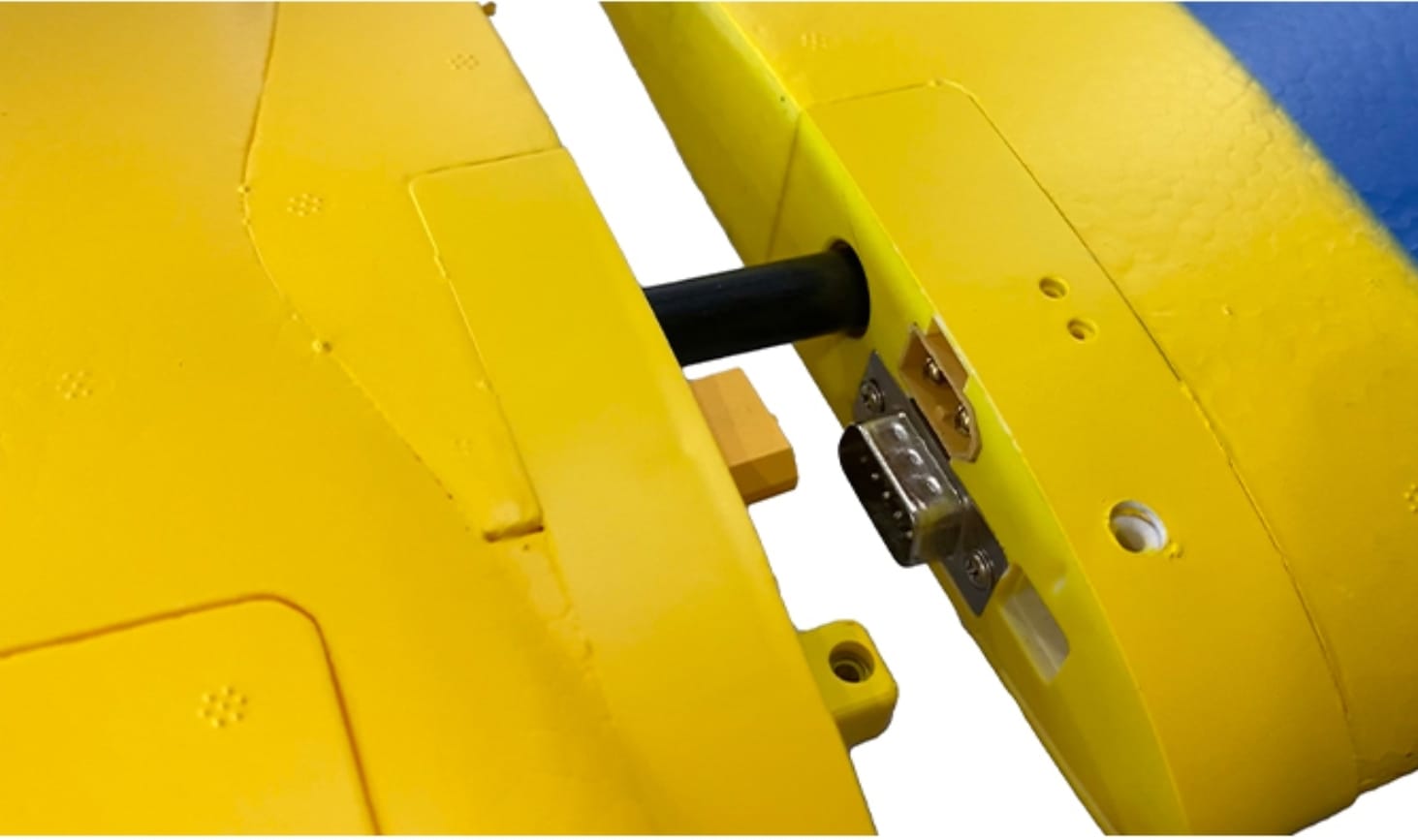

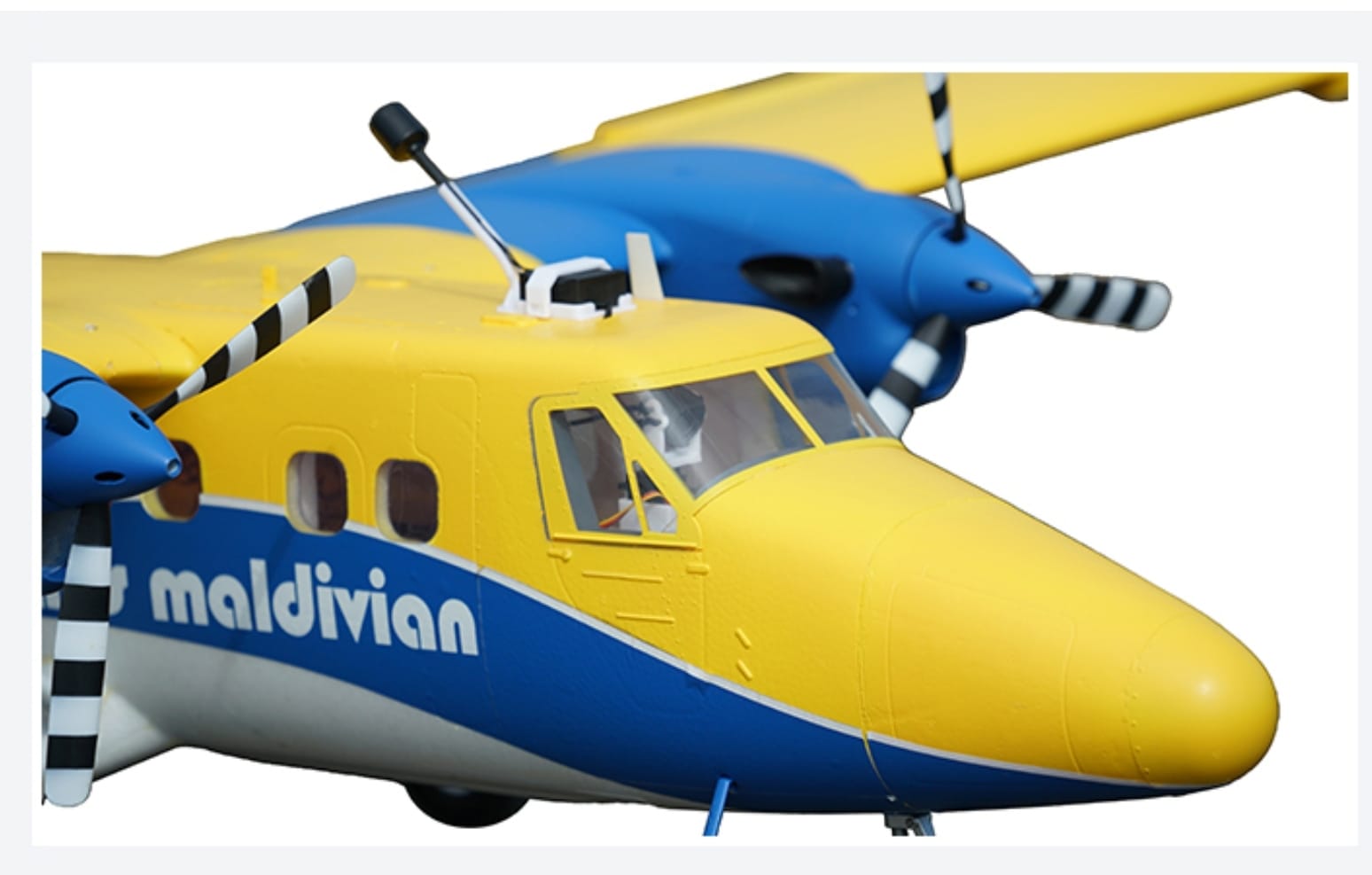

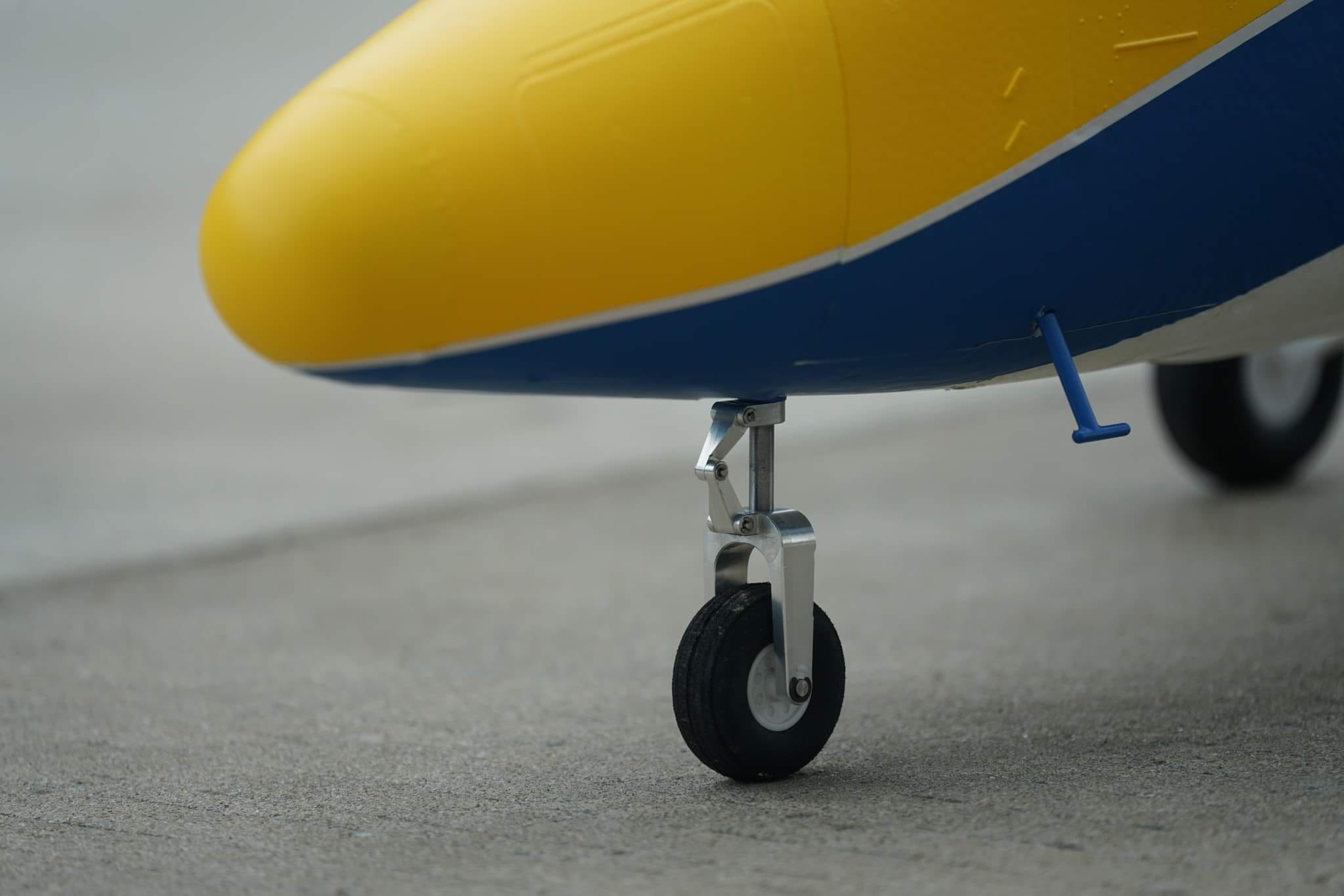

Shock-absorbing metal front landing gear and rigid main landing gears are equipped for easy ground handling and more durability. Two-piece wing, removable nose and stabs make it easy to assemble, dissemble and transport. Clear glass-like windows allow for FPV installation in the capacious cockpit for better visual experience.

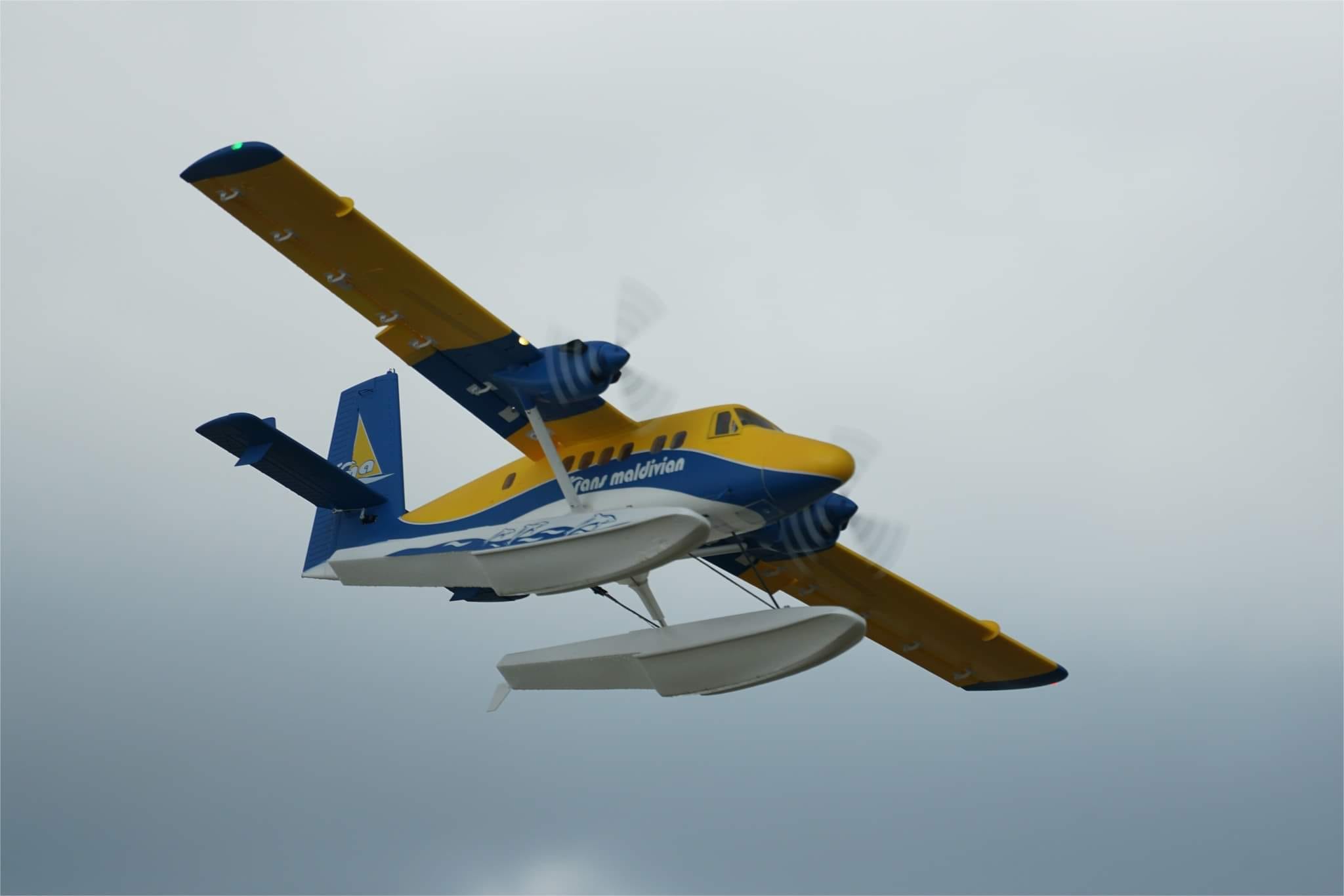

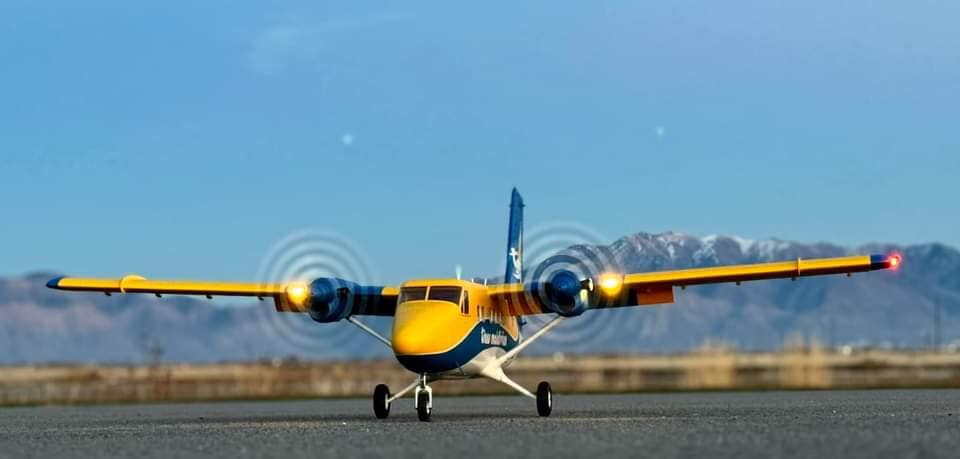

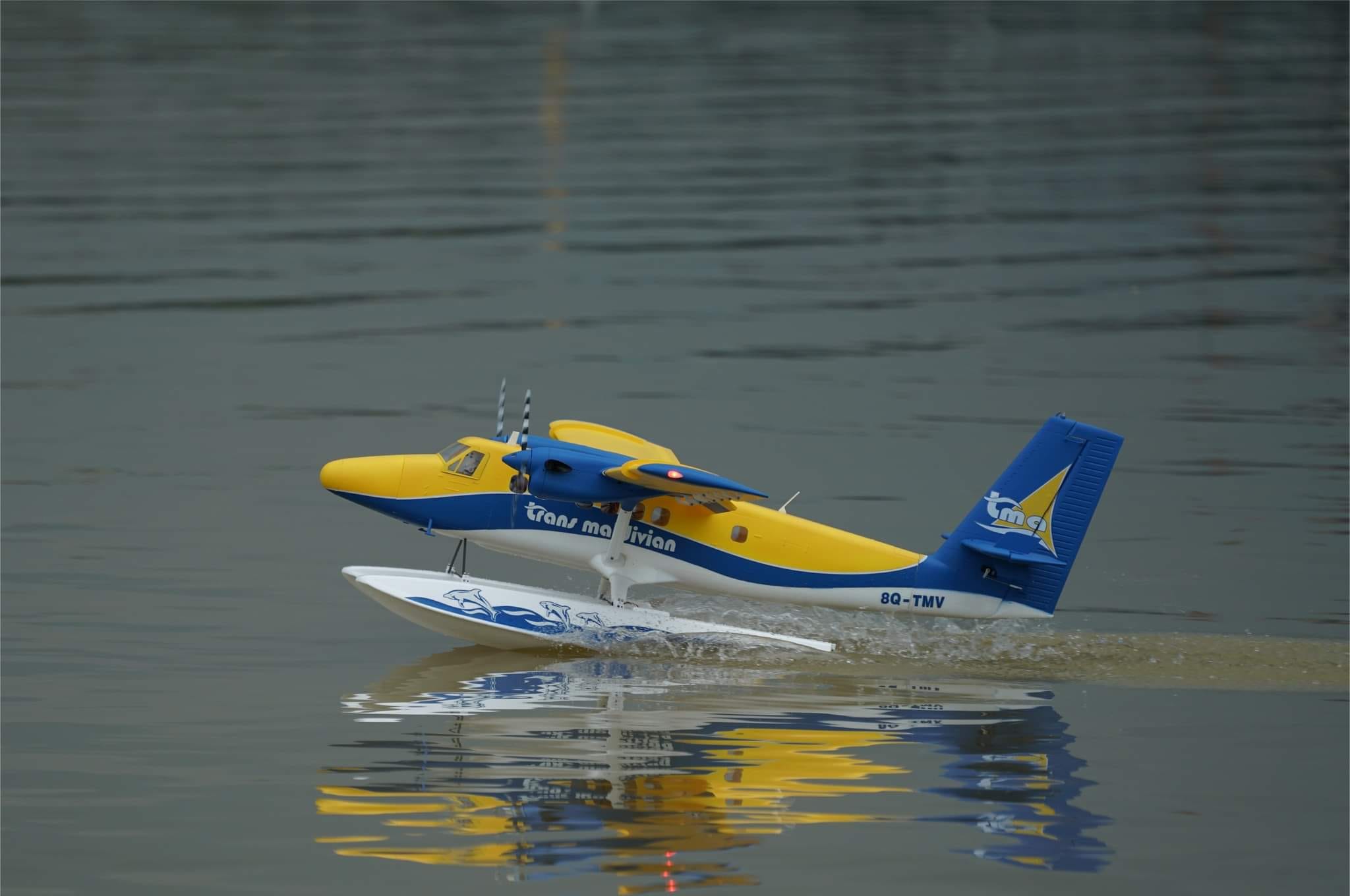

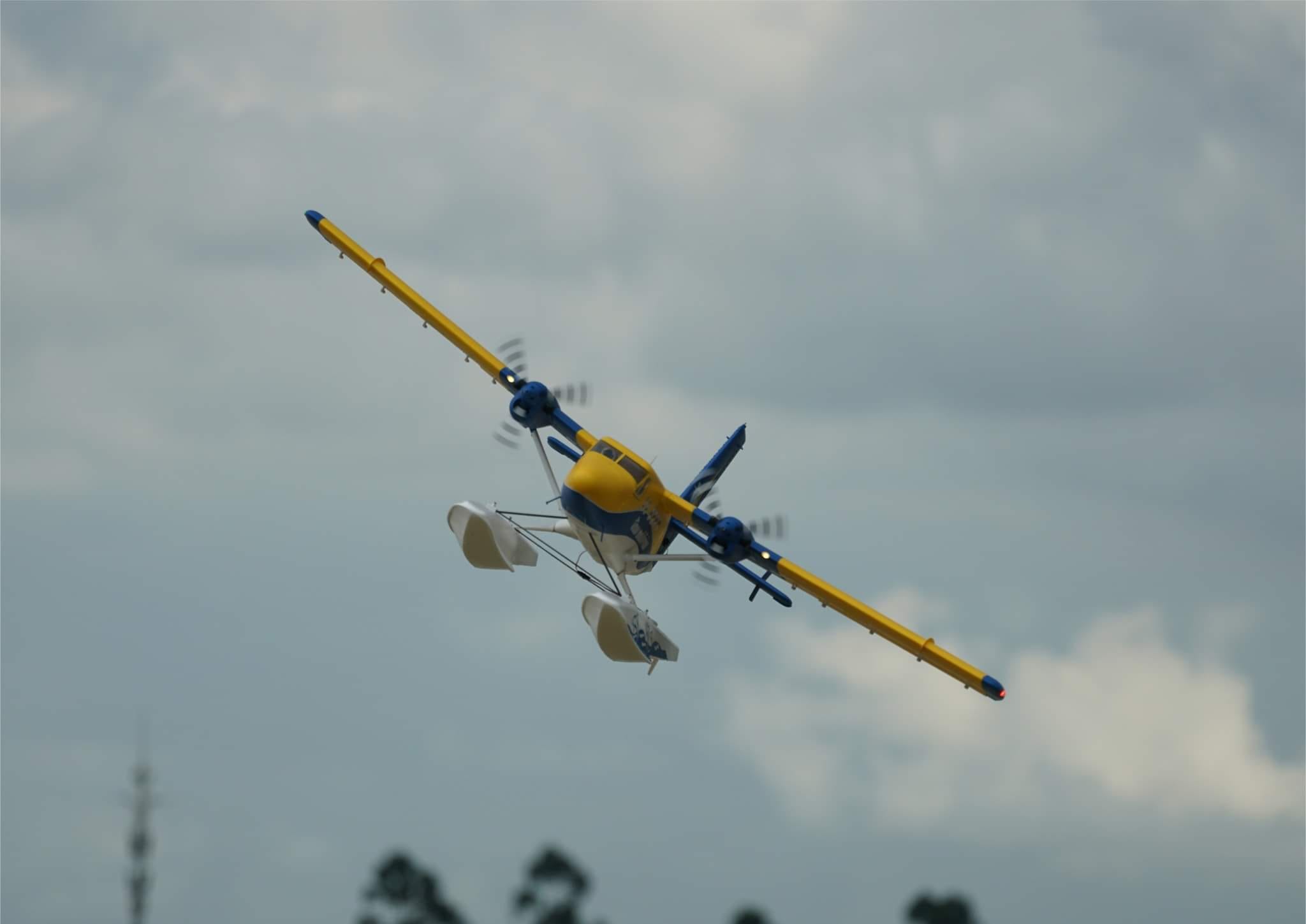

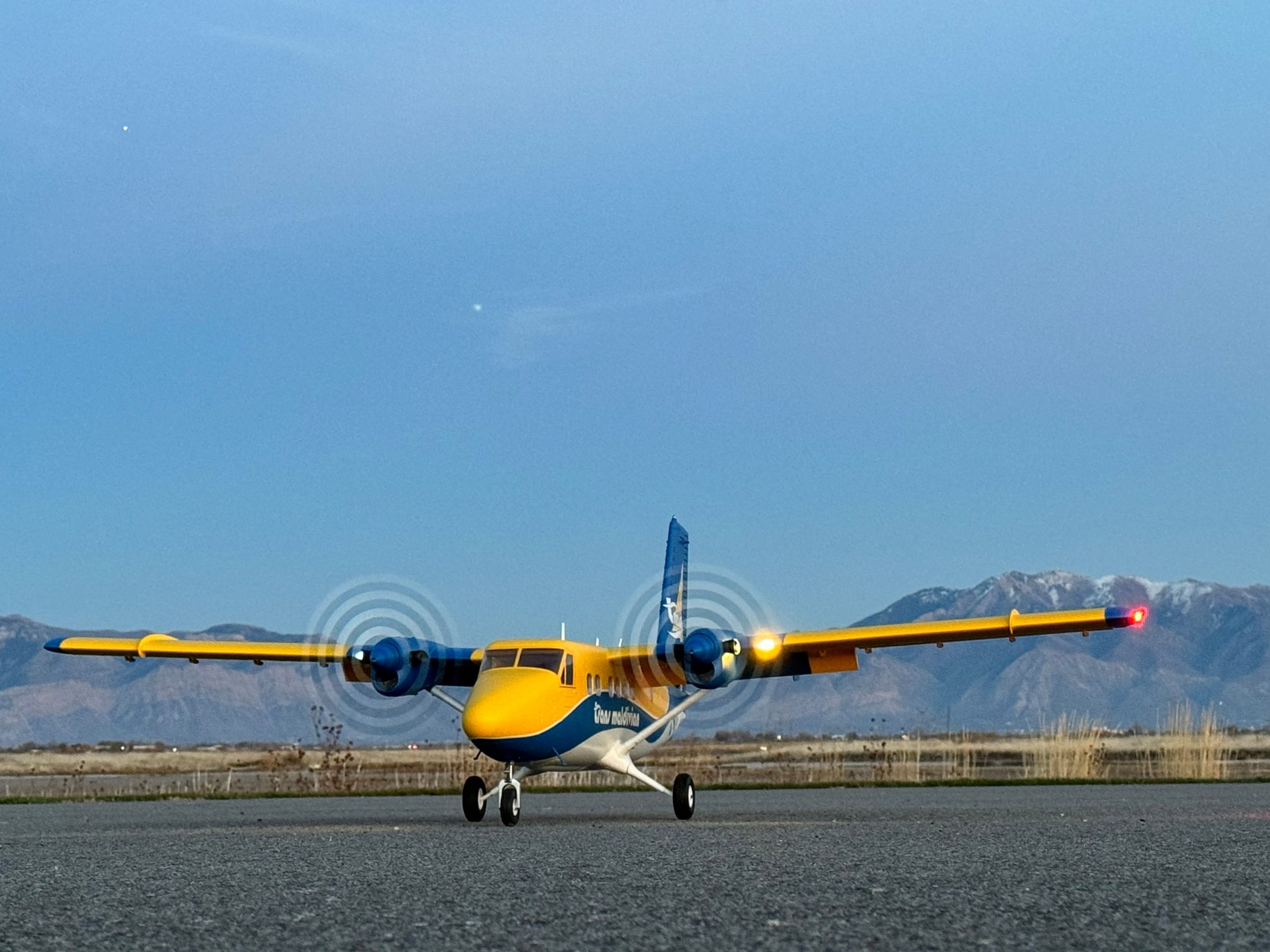

Clearly visible in both day and dusk conditions, the vigorous yellow/blue color scheme and the pre-installed LED lights not only add scale appeal but practical visual reference in the sky. With floats installed, more fun can be explored and enjoyed from the XFly Twin Otter!

Specifications

  • Retaining scale features of the full scale Twin Otter
  • STOL(Short Takeoff and Landing) capabilities
  • Cockpit with clear windows, control surfaces, fixed tricycle landing gears
  • Factory-installed twin efficient power system
  • Capable of aerobatic maneuvers including loops, 4-point rolls and inverted flight
  • Shock-absorbing metal front landing gear and rigid main landing gears
  • Two-piece wing, removable nose and stabs
  • Clear glass-like windows and capacious cockpit allow for FPV installation
  • Pre-installed LED lights for added visibility
  • Vigorous yellow/blue color scheme
  • Without Floats Version

Technical Specifications

  • Wingspan: 1800mm/70.9in
  • Overall Length: 1457mm/57.4in
  • Wing load: 87.5g/dm²
  • Wing Area: 40dm²
  • Flying weight: 3700g
  • Motor: 2 x 3541-KV550
  • ESC: 2 x 40A
  • Servos: 2 x 13g servos, 5 x 9g servos
  • CG: 61mm from the leading edge
  • Prop size: 3-blade 10*7” x2
  • Retract: No
  • LED: Yes
  • Flaps: Yes
  • Landing gear: Fixed main landing gear, steerable nose gear
  • Recommended Radio: 5 channel
  • Recommended environment: Outdoor
  • Battery capacity : 6S 5000-6000mAh
  • Flying time: 5-10 mins
  • Mounting duration: around 10 minutes
  • Skill level: Intermediate
  • Age level: 14 years +
  • Minimum 5 channels Radio
  • 5 channels Receiver
  • 6S 5000-6000mAh Battery
  • Battery charger 6S



Views: 5



Type of kit: PNP
Wingspan: 1800mm/70.9in
Wingspan (Class)(mm) 1650mm and Larger
Length (mm): 1457mm/57.4in
Flying weight (gr) 3700gr
Wing Surface Area: 87.5g/dm²
Wing Loading: 40dm²
CG (Center of Gravity) 61mm from the leading edge
Servos 5x 9gr, 2x 13gr
Blades: 3
Power System 2x 3541-550KV
Electronic Speed Control 2x40A
Battery Type LiPo-Accu
Battery Cells: 6s – 22.2v
Battery Capacity (mAh) 6.000 mAh
Surfaces Flaps
Landing Gear Fixed main landing gear, steerable nose gear
Lights Pre-installed LED
Build time 10 min
Required Radio 5 channels minimum
Recommended pilot skill level Intermediate

Additional information

Weight 18 kg
Dimensions 110 × 43 × 45 cm
Batt. Capacity (mAH)

4400-5500mAH, 5500-6500mAH

Battery Cell (S)

6S (22.2V)

Flaps?

Yes

Min. Channel

6CH+

Fuselage (MM)

1600-2000

Wingspan (MM)

1600-2000MM

Volumetric 35.48 kg
