FMS Rafale 80MM PNP
FMS Rafale 80MM PNP - Image 2
FMS Rafale 80MM PNP - Image 3
FMS Rafale 80MM PNP - Image 4
FMS Rafale 80MM PNP - Image 5
FMS Rafale 80MM PNP - Image 6
FMS Rafale 80MM PNP - Image 7
FMS Rafale 80MM PNP - Image 8

FMS Rafale 80MM PNP

Original price was: Rp11.950.000.Current price is: Rp9.950.000.

In stock

📦 Est. volumetrik kurir: 18.67 kg
Tersedia juga di:
TokopediaShopeeToco
SKU: FMS131P Categories: , , Brand:

Description

Top Highlights
  • 3280-2100KV platinum edition inrunner motor with a high-performance 100A ESC
  • Delta wing design with full flying canards and functional flaps
  • CNC metal shock-absorbing landing gear
  • Functional navigation and landing lights
  • Central function controller
  • Functional and static details lovingly replicated
  • Water based vibrant trim scheme

Description

Innovative Design, 80MM Rafale RC EDF Jet

FMS 80mm Rafale features an attractive trim scheme, excellent scale details and fully functional canards- allowing the aircraft to be truly unique when compared to other 80mm EDF aircraft. Details such as the pilot, cockpit interior, panels, removable armaments, auxiliary fuel tanks, refueling probe, targeting sensor etc; dynamic features such as functional LED navigation and landing lights, CNC shock-absorbing electric retracts, functional canards and flaps etc.
Utilising screws, latches and quick connectors, experienced builders can complete the build process in as little as 5 minutes.
Functions such as delta-mixing, sequential landing gear bay doors, alternating flash navigation lights, nose gear landing lights, slowed flaps etc are all controlled by a central control board. An 80mm 12 bladed EDF with a platinum edition 3280 inrunner motor and 100A high performance ESC easily accomplishes fighter jets maneuvers with realistic sound and speed.

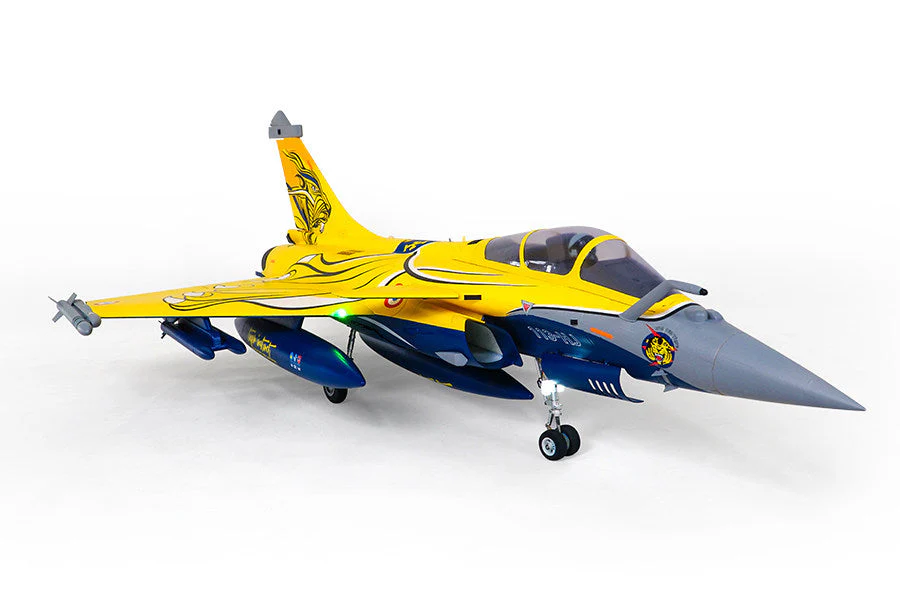

FMS 80mm Rafale EDF Jet PNP with yellow and gray body, dual engines, and landing gear deployed.

FMS 80mm Rafale jet model with yellow and navy blue livery, retracting landing gear, and detailed markings in flight.

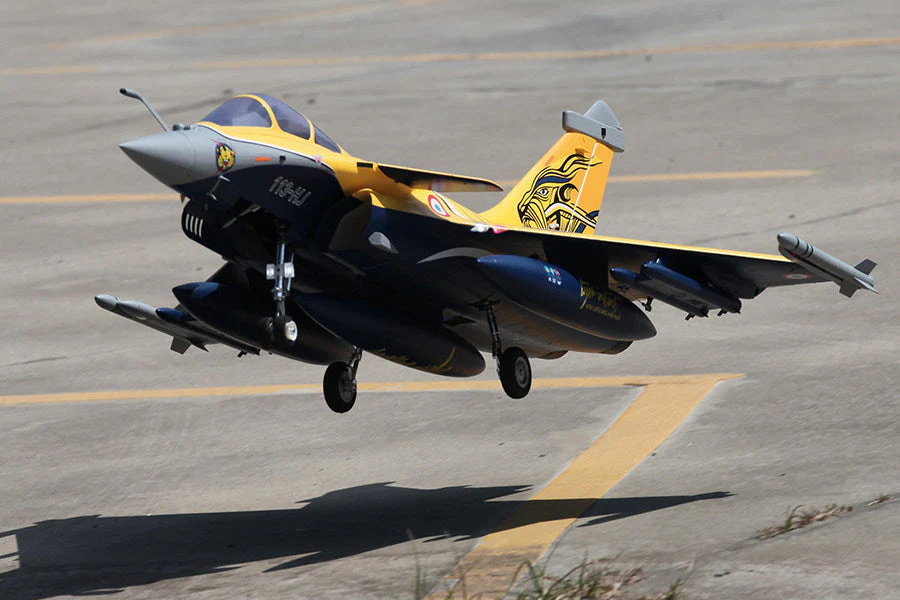

FMS 80mm Rafale EDF jet in striking yellow with black and white cobra graphics, in flight.

FMS 80mm Rafale PNP jet in flight, featuring yellow and blue livery with stylized tiger graphics on tail

Wingspan 974mm /38.3 in
Overall Length 1409mm /55.5 in
Flying Weight Around  3280g
Motor Size 3280 KV2100
ESC 100A
Servo 13gX7pcs
Radio 6CH Channel
CG (center of gravity) 110-130mm
Prop Size 80mm Ducted Fan 12-blade
Recommended Battery 22.2V4000mAh-5000mAh 45c
Battery Connector     EC5
Aileron Yes
Rudder Yes
Flaps Yes
Retracts Yes
Approx. Flying Duration 3minutes
Minimum Age Recommendation 14+
Experience Level Intermediate
Assembly Time 5 minutes
Wing Load 85.2  g/dm²   (  0.17oz/in²)
Wing Area 38.5 dm²    ( 596.6 sq.in)

PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.

What’s in Box

  • 80mm EDF with 12 bladed fan
  • 3280-2100KV Brushless Motor (installed)
  • Hobbywing 100A ESC (installed)
  • 13g Digital All-metal Servos (installed)
  • CNC All-metal Landing Gear (installed)
  • Flashing Navigation Lights On Wings And Taxi Tights On the Bottom Of the Fuselage (installed)
  • Attractive Red-gray Decal
  • Product Manual

Additional information

Weight 13 kg
Dimensions 122 × 34 × 27 cm
Stock Status

Batt. Capacity (mAH)

,

Battery Cell (S)

EDF (MM)

Flaps?

Retractable?

Min. Channel

Skill Level

,

Wingspan (MM)

Fuselage (MM)

Volumetric 18.67 kg
